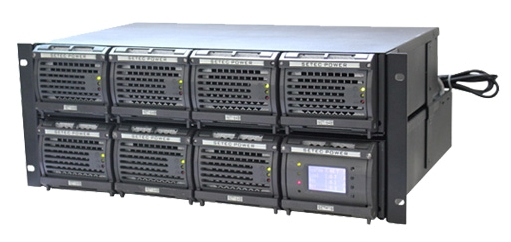

Rackmount rectifier system with distribution and monitor

Rackmount rectifier system with distribution and monitor

»  19” sub-rack

» Modular 2U 4U 5U and 7U options

»Up to 7 rectifier modules

»Pre-configured software

»High power density (48V: 350A, 4U/7U, 19”)

»Fast on-line expansion of rectifiers (hot-swap)

»High efficiency and unity power factor

» Priority and non priority options for DC distributions.



Rectifier System are idea for telecommunication applications, offering compact, efficient,flexible

and reliable secure DC power supply.



Rectifier and monitor modules adopt hot swap technology, Plug and play



These 19” rack mount systems are available with up 7 of rectifier modules as 48V with output up to 350A.

System configuration is flexible and easy to expand; N +1 redundant power supply.

It can be configured according to customer demand；



With active power factor compensation technology power factor of rectifier is up to 0.99



For superior operating efficiency to further reduce operating costs, these systems are also compatible

with rectifiers which provides operating efficiency in excess of 94%.



The systems include an integral DC distribution panel with arrange of MCB and low Voltage Disconnect

(LVD) options available.



Monitoring module offers highly advance control, display and set up parameter through LCD screen,

monitoring features including Smart Alarms.



Remote communication through RS 232 or RS485 , options with SNMP.



Rectifier systems  are pre-configured and all system settings are fully adjustable in software and

stored in transferable, configuration files for repeatable and quick one-step system set-up.
