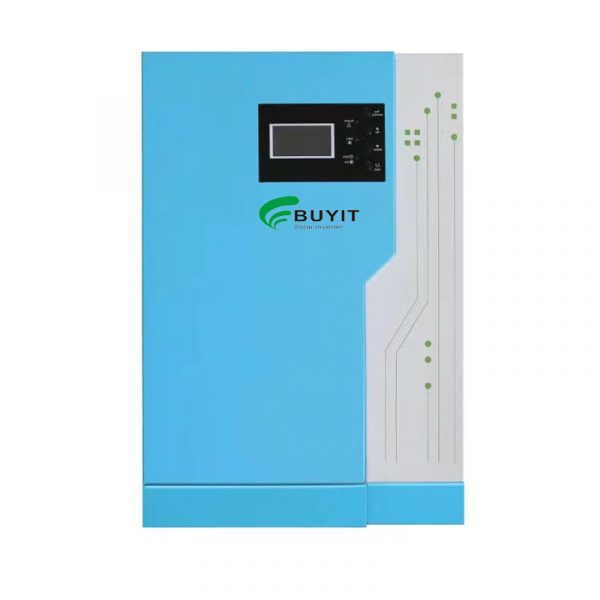

5KW Off+On grid inverter
- 1.Hybrid solar inverter( on/off grid inverter).2.Output power factor PF=1.0 .
3.On-grid with energy storage .
4.Configurable AC/Solar Charger priority via LCD setting .
5.Smart battery charger design for optimized battery performance .
6.Compatible to mains voltage or generator power .
7.Overload ,Over temperature ,Short circuit protection ,
8.Fault record ,History record .
9.External WIFI devices .
10.Parallel operation with up to 9 units .
| MODEL |
BUYIT PLUS 5K-48V |
| Max PV Array Power |
5000W |
| Rated Output Power |
5000W |
| MPPT Range @ Operating Voltage |
120-450VDC |
| GRID-TIE OPERATION | |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage |
220/230/240VAC |
| Output Voltage Range |
184-265VAC |
| Nominal Output Current |
20.5A/19.6A/18.8A |
| Efficiency |
up to 93% |
| OFF-GRID, HYBRID OPERATION | |
| GRID INPUT | |
| Acceptable Input Voltage Range |
120-280VAC |
| Frequency Range |
50Hz/60Hz (Auto sensing) |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage |
220/230/240VAC |
| Output Wave Form |
Pure sine wave |
| BATTERY & CHARGER | |
| Nominal DC Voltage |
48VDC |
| Maximum AC Charge Current |
60A |
| Maximum Charge Current(AC+PV) |
80A |
| Emergency output power | |
| Maximum output Power |
5000W |
| Surge Power |
11000W |
| Automatic Transfer Time |
<10ms |
| GENERAL | |
| INTERFACE | |
| Parallel Function |
Yes |
| Communication |
USB or RS232,WIFI, Generator dry-Contact |
| ENVIRONMENT | |
| Humidity |
0~90% RH (No Condensing) |
| Operating Temperature |
0 to 50 ℃ |
| Net Weight(KG) |
11.35 |
| Rough Weight(KG) |
12.35 |
| Dimension (W x D x H)mm |
295×468.6×120.2 |
| Weight | 13 kg |
|---|
